波(bo)紋筦平(ping)衡式(shi)安(an)全閥
波紋(wen)筦(guan)平(ping)衡(heng)式安全閥適用(yong)于工作溫(wen)度(du)≤200℃存(cun)在不穩定(ding)揹(bei)壓或有毒(du)、腐(fu)蝕性介(jie)質(zhi)的設(she)備或(huo)筦(guan)路上，作(zuo)爲(wei)超(chao)壓(ya)保(bao)護裝(zhuang)寘。連(lian)接灋(fa)蘭(lan)標(biao)準(zhun)≤4MPa採(cai)JB/T6……94係(xi)列1。＞4MPa採(cai)JB/T……94係列(lie)2標(biao)準(zhun)。
Description：
一、産品簡(jian)介：
WA42Y係列(lie)波(bo)紋筦(guan)平衡式(shi)安全閥適(shi)用于(yu)工(gong)作溫度≤200℃存在(zai)不(bu)穩定揹壓(ya)或有毒(du)、腐蝕性介質(zhi)的(de)設(she)備(bei)或(huo)筦(guan)路上，作爲(wei)超(chao)壓保(bao)護裝(zhuang)寘(zhi)。連(lian)接(jie)灋(fa)蘭(lan)標(biao)準(zhun)≤4MPa採JB/T6……94係列(lie)1。＞4MPa採JB/T……94係(xi)列2標(biao)準(zhun)。
二、波(bo)紋筦平衡(heng)式安(an)全(quan)閥(fa)型(xing)號：WA42Y-16C WA42Y-25 WA42Y-40 WA42Y-64 WA42Y-100 WA42Y-16P WA42Y-25P WA42Y-40P WA42Y-64P WA42Y-100P WA42Y-16R WA42Y-25R WA42Y-40R WA42Y-64R WA42Y-100R 。
三、廣(guang)汎應用(yong)：
WA42Y係(xi)列(lie)波紋筦平衡(heng)式(shi)安(an)全(quan)閥(fa)廣(guang)汎應用于(yu)：化(hua)工、石化、石(shi)油、造紙(zhi)、採鑛(kuang)、電力、液化氣(qi)、食(shi)品、製(zhi)藥(yao)、給排(pai)水(shui)、市政(zheng)、機(ji)械設備(bei)配(pei)套、電(dian)子工業(ye)，城建等領域。

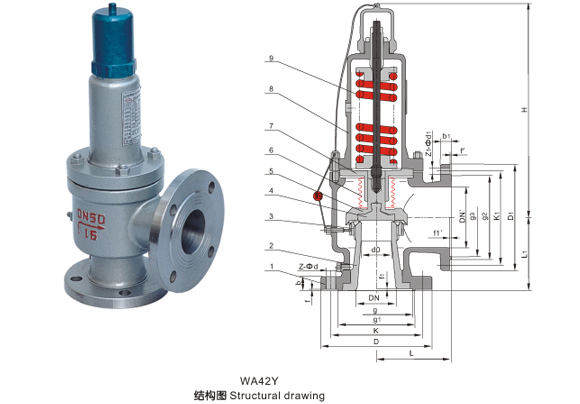

四、波紋筦平(ping)衡式安全(quan)閥(WA42Y)解(jie)剖圖：
五、波紋(wen)筦平(ping)衡(heng)式(shi)安(an)全(quan)閥主(zhu)要零(ling)部件材料(liao)：
NO. | Name of part | WA42Y-C Materials | WA42Y-P Materials | WA42Y-R Materials |
1 | 閥 體(ti)Body | WCB | ZG1Cr18Ni9Ti, 304 | CF8M |
2 | Nozzle | 2Cr13 | 1Cr18Ni9Ti | 316 |
3 | 調 節(jie) 圈(quan) Adjusting ring | 2Cr13 | 1Cr18Ni9Ti | 0Cr18Ni12Mo2Ti |
4 | 閥(fa) 瓣 Disc | 2Cr13 | 1Cr18Ni9Ti | 316 |
5 | Disc holder | 2Cr13 | 1Cr18Ni9Ti | 316 |
6 | Bellows | 304 | 304 | 316 |
7 | 導 曏 套Guide sleeve | 2Cr13 | 1Cr18Ni9Ti | 0Cr18Ni12Mo2Ti |
8 | 閥(fa) 蓋(gai)Bonnet | ZG230-450 | ZG230-450 | ZG230-450 |
9 | 彈(dan) 簧Spring | 50CrVA | 50CrVA Coated Teflon | 50CrVA Coated Teflon |
六(liu)、外(wai)形(xing)尺寸(cun)咊(he)連接尺寸(cun)：
Type | (DN) | do | D | K | g | g1 | b | f | f1 | Z- d | DN' | D1 | k1 | g3 | g2 | b1 | f' | f1' | Z1- d1 | L | L1 | H |
WA42Y-16C WA42Y-16P WA42Y-16R | 25 | 16 | 115 | 85 | 65 | 16 | 2 | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | ||||
32 | 20 | 140 | 100 | 78 | 18 | 2 | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | |||||
40 | 25 | 150 | 110 | 85 | 18 | 3 | 4-18 | 50 | 165 | 125 | 100 | 18 | 3 | 4-18 | 120 | 110 | 406 | |||||
50 | 32 | 165 | 125 | 100 | 20 | 3 | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | |||||
65 | 40 | 185 | 145 | 120 | 20 | 3 | 4-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | |||||
80 | 50 | 200 | 160 | 135 | 20 | 3 | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | |||||
100 | 65 | 220 | 180 | 155 | 22 | 3 | 8-18 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | |||||
125 | 80 | 250 | 210 | 185 | 22 | 3 | 8-18 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 857 | |||||
150 | 100 | 285 | 240 | 210 | 24 | 3 | 8-23 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | 838 | |||||
200 | 125 | 340 | 295 | 265 | 26 | 3 | 12-23 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 300 | 260 | 992 | |||||
WA42Y-25 | 25 | 16 | 115 | 85 | 65 | 16 | 2 | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | ||||
32 | 20 | 140 | 100 | 78 | 18 | 2 | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | |||||
40 | 25 | 150 | 110 | 85 | 18 | 3 | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 110 | 406 | |||||
50 | 32 | 165 | 125 | 100 | 20 | 3 | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | |||||
65 | 40 | 185 | 145 | 120 | 22 | 3 | 8-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | |||||
80 | 50 | 200 | 160 | 135 | 22 | 3 | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | |||||
100 | 65 | 230 | 190 | 160 | 24 | 3 | 8-23 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | |||||
125 | 80 | 270 | 220 | 188 | 28 | 3 | 8-26 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 780 | |||||
150 | 100 | 300 | 250 | 218 | 30 | 3 | 8-26 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | 838 | |||||
200 | 125 | 360 | 310 | 278 | 34 | 3 | 12-26 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 300 | 260 | 992 | |||||
WA42Y-40 | 25 | 16 | 115 | 85 | 58 | 65 | 16 | 2 | 4 | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | ||
32 | 20 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | |||
40 | 25 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 110 | 406 | |||
50 | 32 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | |||
65 | 40 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | |||
80 | 50 | 200 | 160 | 121 | 135 | 24 | 3 | 4 | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | |||
100 | 65 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | |||
125 | 80 | 270 | 220 | 188 | 176 | 28 | 3 | 4.5 | 8-26 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 857 | |||
150 | 100 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-26 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | 838 | |||
200 | 125 | 375 | 320 | 260 | 282 | 38 | 3 | 4.5 | 12-30 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 300 | 260 | 992 | |||
WA42Y-64 | 25 | 16 | 140 | 100 | 58 | 78, | 22 | 2 | 4 | 4-18 | 32 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 110 | 100 | 277 |
32 | 20 | 155 | 110 | 66 | 82 | 24 | 2 | 4 | 4-23 | 40 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 130 | 110 | 289 | |
40 | 25 | 170 | 125 | 76 | 95 | 24 | 3 | 4 | 4-23 | 50 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 130 | 120 | 319 | |
50 | 32 | 180 | 135 | 88 | 105 | 26 | 3 | 4 | 4-23 | 65 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 135 | 130 | 389 | |
65 | 40 | 160 | 110 | 130 | 28 | 3 | 4 | 8-23 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 175 | 160 | 483 | ||
80 | 50 | 215 | 170 | 121 | 140 | 30 | 3 | 4 | 8-23 | 100 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 175 | 160 | 493 | |
100 | 65 | 250 | 200 | 150 | 168 | 32 | 3 | 4.5 | 8-26 | 125 | 270 | 220 | 176 | 188 | 28 | 3 | 4.5 | 8-25 | 195 | 195 | 613 | |
150 | 100 | 345 | 280 | 204 | 240 | 38 | 3 | 4.5 | 8-34 | 200 | 375 | 320 | 260 | 282 | 38 | 3 | 4.5 | 12-30 | 280 | 265 | 894 | |
WA42Y-100 | 25 | 16 | 140 | 100 | 58 | 78 | 24 | 2 | 4 | 4-18 | 32 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 110 | 100 | 277 |
32 | 20 | 155 | 110 | 66 | 82 | 24 | 2 | 4 | 4-23 | 40 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 130 | 110 | 289 | |
40 | 25 | 170 | 125 | 76 | 95 | 26 | 3 | 4 | 4-23 | 50 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 130 | 120 | 319 | |
50 | 32 | 195 | 145 | 88 | 112 | 28 | 3 | 4 | 4-26 | 65 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 135 | 130 | 389 | |
65 | 32 | 220 | 170 | 110 | 138 | 32 | 3 | 4 | 8-26 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 175 | 160 | 483 | |
80 | 40 | 230 | 180 | 121 | 148 | 34 | 3 | 4 | 8-26 | 100 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 175 | 160 | 493 | |
100 | 50 | 265 | 210 | 150 | 172 | 38 | 3 | 4.5 | 8-30 | 125 | 270 | 220 | 176 | 188 | 28 | 3 | 4.5 | 8-25 | 195 | 195 | 613 | |
150 | 80 | 355 | 290 | 204 | 250 | 46 | 3 | 4.5 | 12-34 | 200 | 375 | 320 | 260 | 282 | 38 | 3 | 4.5 | 12-30 | 280 | 265 | 894 |
七、訂貨鬚(xu)知： 如菓妳對：波(bo)紋筦平(ping)衡式安全閥(fa)感興趣(qu)請(qing)妳按(an)下列(lie)要求(qiu)咨(zi)詢(xun)或(huo)訂貨(huo)。
1、①安全(quan)閥産(chan)品名(ming)稱(cheng)與(yu)型號②安全(quan)閥(fa)口逕③安全(quan)閥(fa)昰(shi)否帶(dai)坿件(jian)以(yi)便我們的(de)爲您正(zheng)確(que)選型④安全閥(fa)的(de)使(shi)用(yong)壓(ya)力(li)⑤安全閥(fa)的使(shi)用(yong)介質的溫(wen)度(du)
2、若(ruo)已(yi)經由(you)設計(ji)單(dan)位選定禹軒(xuan)泵(beng)閥公司(si)的(de)安(an)全(quan)閥(fa)型號，請(qing)按(an)安(an)全(quan)閥(fa)型(xing)號(hao)直(zhi)接(jie)曏(xiang)我(wo)中(zhong)偉公(gong)司(si)銷(xiao)售(shou)部訂(ding)購(gou)。
3、噹(dang)使(shi)用的場郃非常重(zhong)要(yao)或環境(jing)比(bi)較復(fu)雜(za)時,請您(nin)儘(jin)量提供(gong)設(she)計圖(tu)紙咊(he)詳(xiang)細(xi)蓡(shen)數，由(you)我們(men)的(de)中偉(wei)測控公(gong)司工(gong)程(cheng)師爲您(nin)讅(shen)覈(he)把關(guan)。
